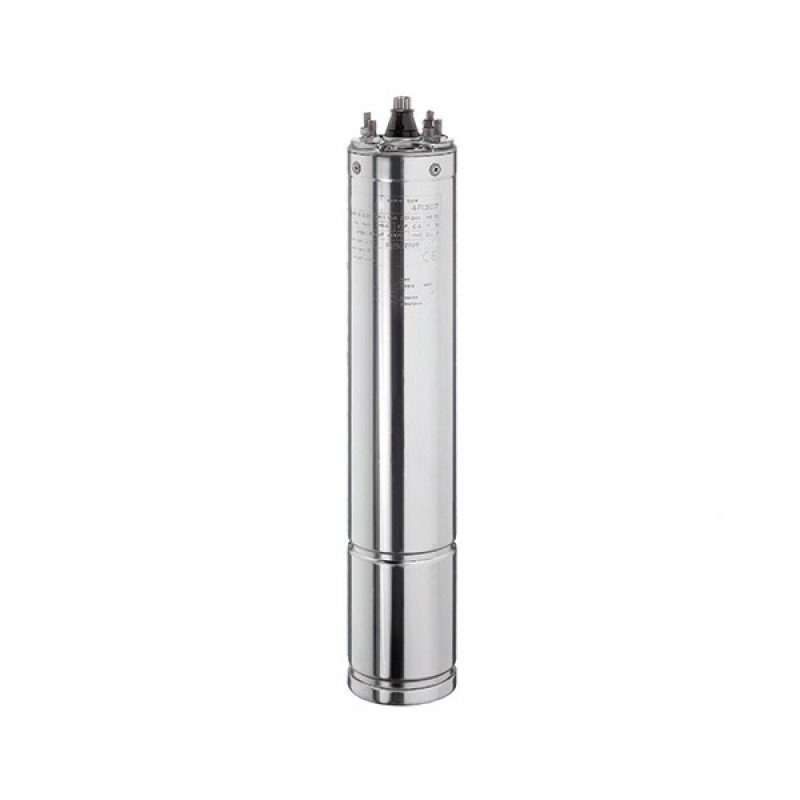

Stairs Motor Submersible 0.37kw 230v
100 mm rewindable submersible motor for standard applications with maintenance free lubricated bearings and approved non-toxic vegetable oil. Dimensions and flange according to Nema4-standards. Matching Stairs control boxes must be installed or a USB control box. Maximum water temperature of 35 degreesC and immersion depth of 200 M. Motor can be installed in a horizontal or vertical position. Motor fitted with a removable lead-out cable. 0.37kW to 4kW. General specifications: Mounting flange: 4 nema standard, insulation class F, protection IP68, single phase motors: 0.37kW up to 4.0kW. Three-phase motors: 0.37kW up to 7.5kW, standard voltages: 1 ~ 230 V (50 hz), 3 ~ 230 V or 400 V (50 hz). Cable length: 1.7 M - 0.37kW up to 1.5kW, 2.5 M - 2.2kW up to 7.5kW. Materials: Motor shell - 304 stainless steel, mechanical seal - ceramic/carbon, shaft (0.5 - 3 hp) - 304 stainless steel, shaft (4 -10 hp) - 630 stainless steel.
100mm rewindable submersible motor for standard applications with maintenance free lubricated bearings and approved non-toxic vegetable oil. Dimensions and flange according to Nema4-standards. Matching Stairs control boxes must be installed or a USB control box.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
