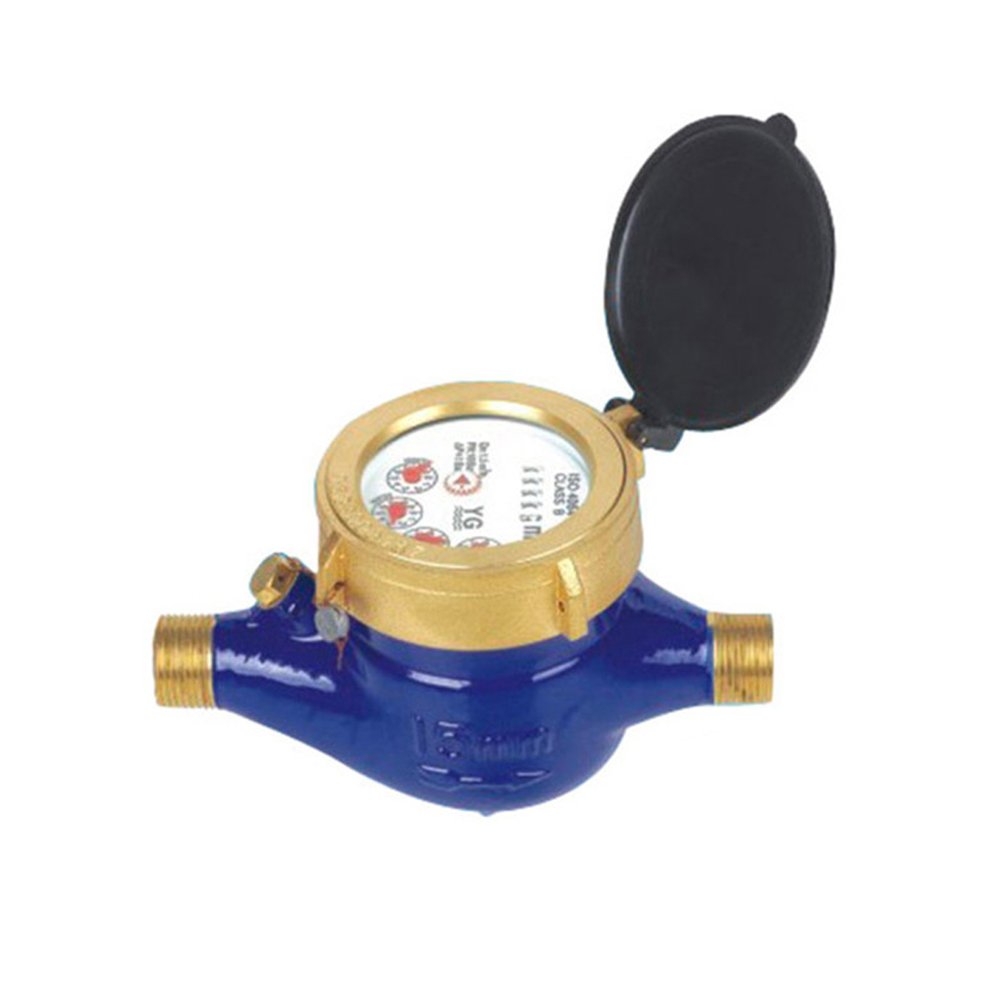

Precision Meters Water Meter 20mm Multi-Jet Brass Cold Class B

APPLICATION* - Measures the volume of cold water passing through a pipeline.* - Domestic billing purposes.* FEATURES* - DZR brass body, epoxy coated.* - Magnetic drive.* - Dry type indicator for clear reading.* - Inlets Strainer.* - Pulse prepared with different pulse settings available.* - Capable for recalibration.* - Not sensitive to fine solids.* - Each meter has a unique serial number.* - Inlet and Outlet threads compatible with ISO metric sizes.* WORKING CONDITIONS* - Working temperature: Equal or Smaller than 50 Degree Celsius for cold water: 1600 kPa (16bar)* - * MAXIMUM PERMISSIBLE ERRORS* - In the lower zone from qmin inclusive up to but excluding qt is plus minus 5 percent.* - In the upper zone from qt inclusive up to and including qs is plus minus 2 percent. * COMPLIANCE STANDARD* - Conforms to SANS 1529-1: Class B.* - Conforms to ISO4064: Class B.* INSTALLATION REQUIREMENTS* - Must be installed on a horizontal pipeline only.* - Pipeline must be flushed before installation.* - Meters should be constantly full of water during operation.* IMPORTANT NOTICE * - No Hemp to be used during installation.* - No soldering or heat to be applied during installation. Do not remove from installation as it will void warrenty.

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days
